The quest for seamless interior design has made traditional access panel fasteners increasingly obsolete. While architects and designers strive for flawless surfaces in high-end spaces, conventional mounting methods like visible screws, basic spring mechanisms, and magnetic closures present significant challenges that compromise both aesthetics and functionality.
Screw-mounted panels, though widely used, create unsightly interruptions in clean surfaces and often loosen with repeated access. Spring-loaded systems, while offering quick access, suffer from durability issues and weight limitations that make them unsuitable for professional applications. Magnetic closures, despite their modern appeal, require visible frames and present ongoing challenges with calibrating magnetic force.
These limitations particularly impact high-end architectural applications, where seamless integration is essential. The resulting cascade of problems affects not only aesthetics but also maintenance efficiency and safety standards, creating an urgent need for innovative hidden fastening solutions.
Traditional hidden access panel hardware
Early attempts at concealed access panel mounting introduced solutions like French cleats and Z-clips. French cleats, using interlocking angled battens, provide strong weight distribution but require sequential panel removal and additional clearance space for installation. Similarly, Z-clips offer reliable support for heavy panels but share the same limitations – panels must be removed in order from top to bottom, making maintenance access cumbersome and time-consuming. While these methods eliminate visible hardware, they still present significant practical challenges for spaces requiring frequent access or bottom-panel maintenance.
Comprehensive guide to Fastmount’s hidden access panel fasteners
The evolution of panel mounting technology has moved far beyond these traditional methods through the development of sophisticated clip systems. Fastmount’s innovative clip-based solutions specifically address the limitations of French cleats and Z-clips through specialized ranges designed for various applications, panel materials, and weight requirements. Each range offers distinct advantages for creating invisible access panels while maintaining structural integrity and installation flexibility.

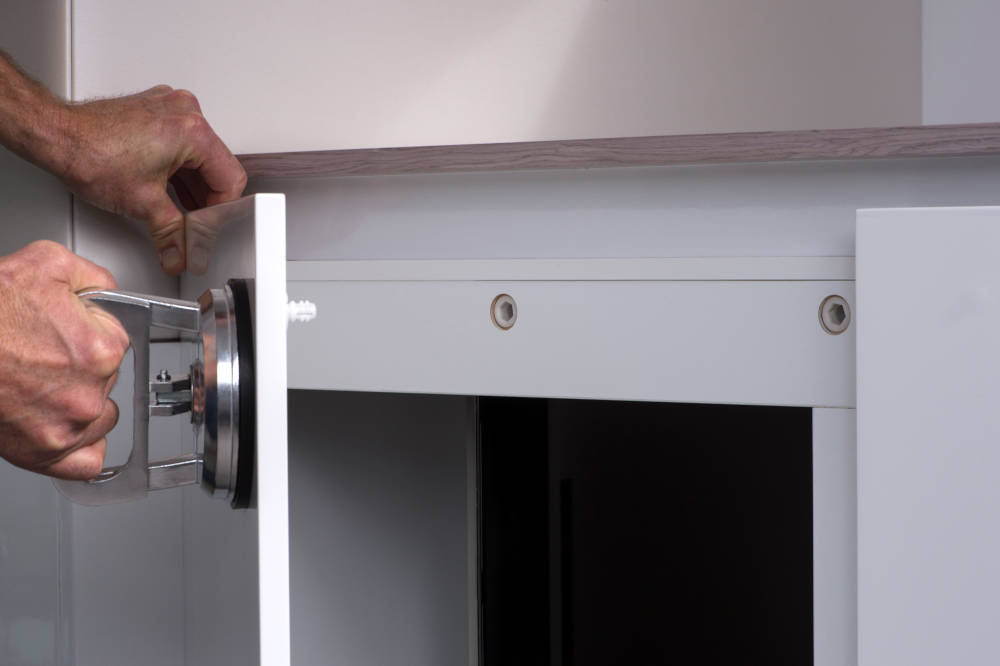

Standard Range
The Standard Range exemplifies precision engineering specifically for access panels, offering versatile solutions where both concealment and reliable panel removal are essential. With pull-out loads from 5-15kg / 11-33 lbs, these interchangeable clips deliver the secure mounting and seamless finish that premium access panel installations demand. One of the key benefits of the Standard Range is the variety of mounting options available, including self-tapping, glue mounted, and screw-fixed.
The range’s design focuses on the unique challenges of access panels – enabling quick removal while maintaining a flawless appearance. Each component ensures perfect panel alignment and consistent performance through frequent access cycles, crucial for maintenance points in areas like marine vessels.

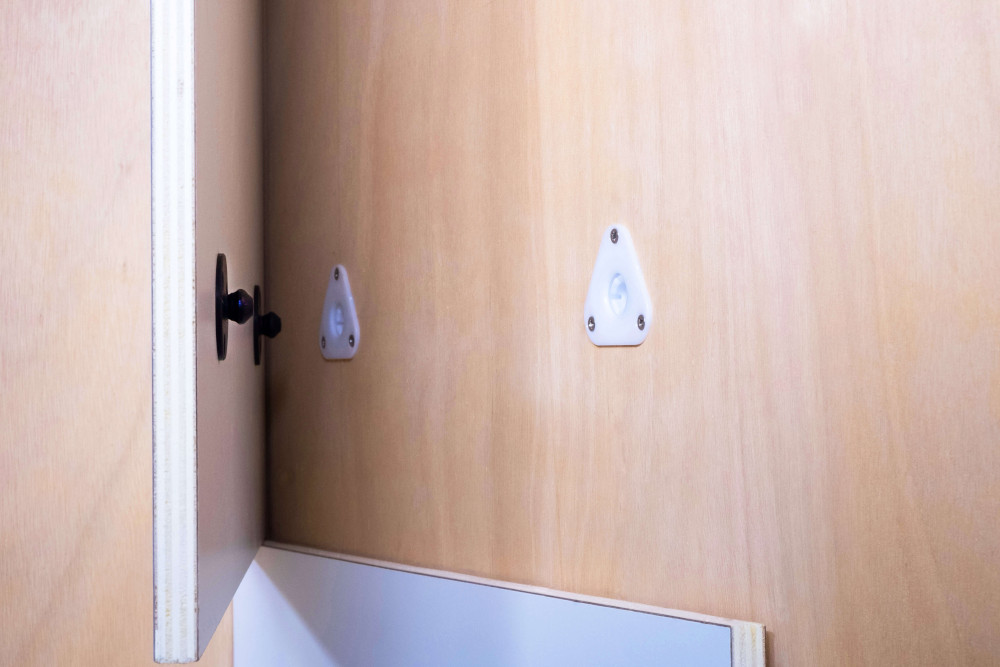

Low Profile Range
The Low Profile Range solves a specific challenge in access panel design, achieving concealed mounting where space is extremely limited. With pull-out loads from 5-15kg / 11-33 lbs, these clip sets are particularly valuable in applications where traditional mounting depths would be prohibitive, such as shallow-depth wall cavities or retrofitted access panels where space constraints are a primary concern. The self-tapping female clips are specifically designed to work with drywall and MDF substrates, commonly used for access panel installations.
Very Low Profile Range
As the name suggests, the Very Low Profile Range takes minimal clearance to the next level for access panel installations. Designed specifically for ultra-thin panels where every fraction of an inch counts, this range maintains secure mounting and seamless appearance while requiring the least space between panel and substrate of all Fastmount systems. Pull-out loads vary from 5-10kg / 11-22lb per clip set, with a certified fire-rated version available. Installation is quick and efficient for clips in the VL range, with no special Fastmount tools required.

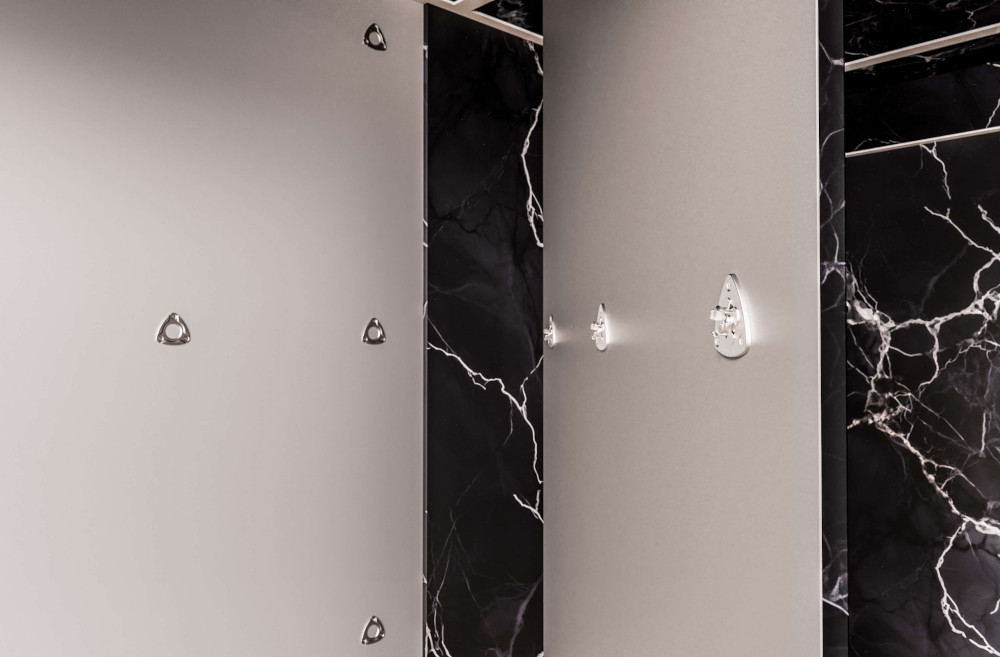

Metal Range
The Metal range addresses heavy-duty access panel requirements where superior strength and fire resistance are essential. With pull-out loads of 5kg/11lb or 10kg/22lb depending on clip selection, these fasteners provide secure mounting for demanding environments. The range includes 304 or 316 stainless steel clips for fire-rated applications, with some specific clips suitable for ceiling access panels.

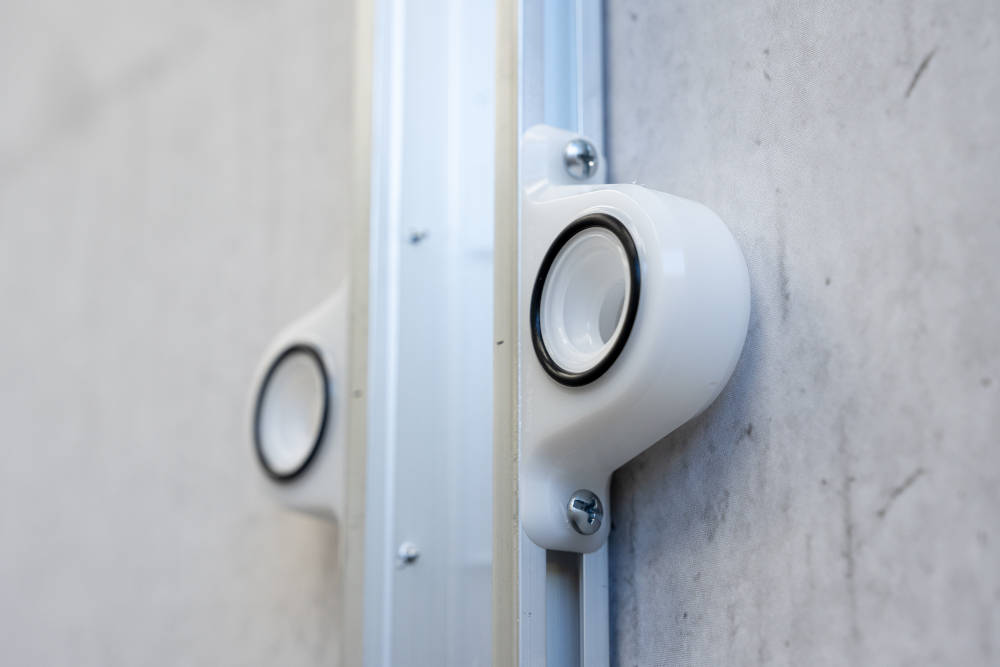

Stratlock Range
The Stratlock Range addresses heavy-duty hidden access panel requirements where precise adjustment and superior load capacity are essential. With pull-out loads up to 20kg/40lb per clip, these fasteners provide secure mounting for heavy panels while allowing supported 360 degree panel adjustment, with a total of 0.31″ adjustability before final locking. The range is particularly valuable for access panels in commercial environments like hotels and hospitals, where both robust performance and seamless appearance are critical.

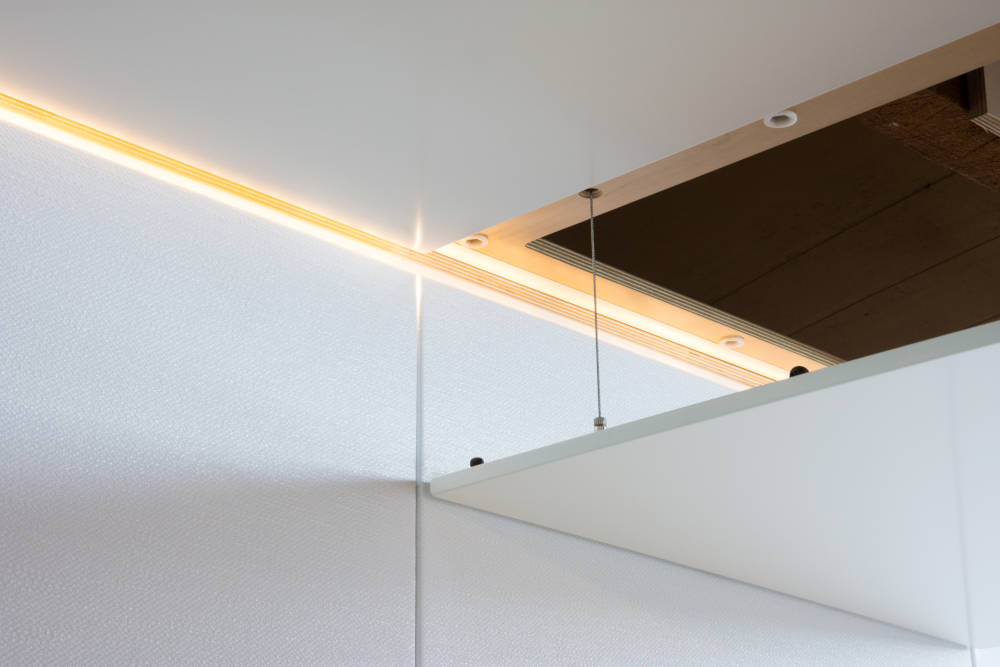

PanelSafe Range
The PanelSafe Range adds an important safety dimension to ceiling access panels, allowing controlled panel removal while preventing accidental drops. When used with any of Fastmount’s clip systems, these restraints enable panels to be suspended below the ceiling for safe servicing of utilities above. This feature is particularly valuable for large or heavy ceiling access panels where controlled removal and temporary suspension are essential for maintenance safety.
Access panel installation considerations
While each range has specific installation requirements detailed in Fastmount’s Technical Guide, several key principles apply across all hidden access panel installations.
Panel preparation
Proper access panel preparation requires specific hole drilling and minimum thickness requirements based on the chosen clip system. Material compatibility for access panels includes plywood, MDF, plastic, fiberglass, HPL, and composite panels. Very heavy materials such as granite or heavy fiber cement board are not recommended for access panel applications due to the need for frequent removal and reinstallation.
Tool and testing requirements
Some Fastmount product ranges require specific Fastmount installation and removal tools to ensure proper clip engagement. Professional installation tools are available for both upholstered and painted access panels. A test installation is strongly recommended to verify proper clip engagement and compatibility with your specific panel materials before proceeding with the full installation.
Safety considerations
For ceiling access panels, even perimeter support is essential for stability during repeated removal and reinstallation. The PanelSafe Range enables controlled panel suspension during maintenance access, with clip selection and spacing determined by the panel’s weight and dimensions to ensure safe, reliable operation.
Real-world applications
The following are real-world examples of projects that utilized Fastmount’s advanced access panel fasteners to create functional and beautiful spaces.
Mercy Ascot Hospital, New Zealand
This case study demonstrates how Fastmount’s Low Profile Range was used to create hidden access panels in the Mercy Ascot Hospital renovation project. It involved creating access panels in headboards for thirty-four beds at a private hospital in Auckland, New Zealand, where maintenance staff needed to access electrical and monitoring services.
The Low Profile Range was specifically chosen because it allowed new panels to be mounted over existing structures while maintaining minimal depth requirements. The solution provided both hidden access to services and the ability to quickly replace damaged panels in the demanding hospital environment.
NH Collection Milano CityLife Hotel, Italy
This case study demonstrates how Fastmount’s Stratlock Range was used to create hidden access panels throughout the NH Collection Milano CityLife Hotel. The installation involved mounting removable panels throughout the 185-room property, including guest rooms, meeting spaces, and dining areas.
The Stratlock Range was specifically chosen to provide both functionality and aesthetics, creating a flush finish while enabling easy access to electronic components behind the panels. In guest rooms, the Stratlock Rail system was used for mounting headboards and feature panels, while in high-ceiling areas like meeting rooms and dining spaces, the range was employed to mount large, heavy wall panels that required maintenance access.
The solution successfully merged modern design requirements with the building’s historic architecture, maintaining high-quality finishes while ensuring practical access to services throughout this luxury hotel property. This installation demonstrates how hidden access panel solutions can be effectively integrated into high-end hospitality environments.
Future-ready fastening solutions
The evolution from visible hardware to sophisticated hidden fastening systems represents a significant advancement in access panel technology. As building requirements become more complex and design standards more demanding, the ability to create invisible access solutions while maintaining functionality becomes increasingly crucial.
Whether working with standard installations or ultra-thin panels, today’s range of concealed fastening options provides unprecedented flexibility for architects and installers. By carefully considering your specific requirements – panel material, access frequency, load capacity, and space constraints – you can select a fastening system that delivers both aesthetic excellence and long-term reliability.
Explore Fastmount’s comprehensive range of panel mounting solutions for professional guidance on selecting the right hidden access panel fasteners for your next project. For specifications and installation instructions for all hidden access panel clips, please refer to Fastmount’s Technical Guide.
