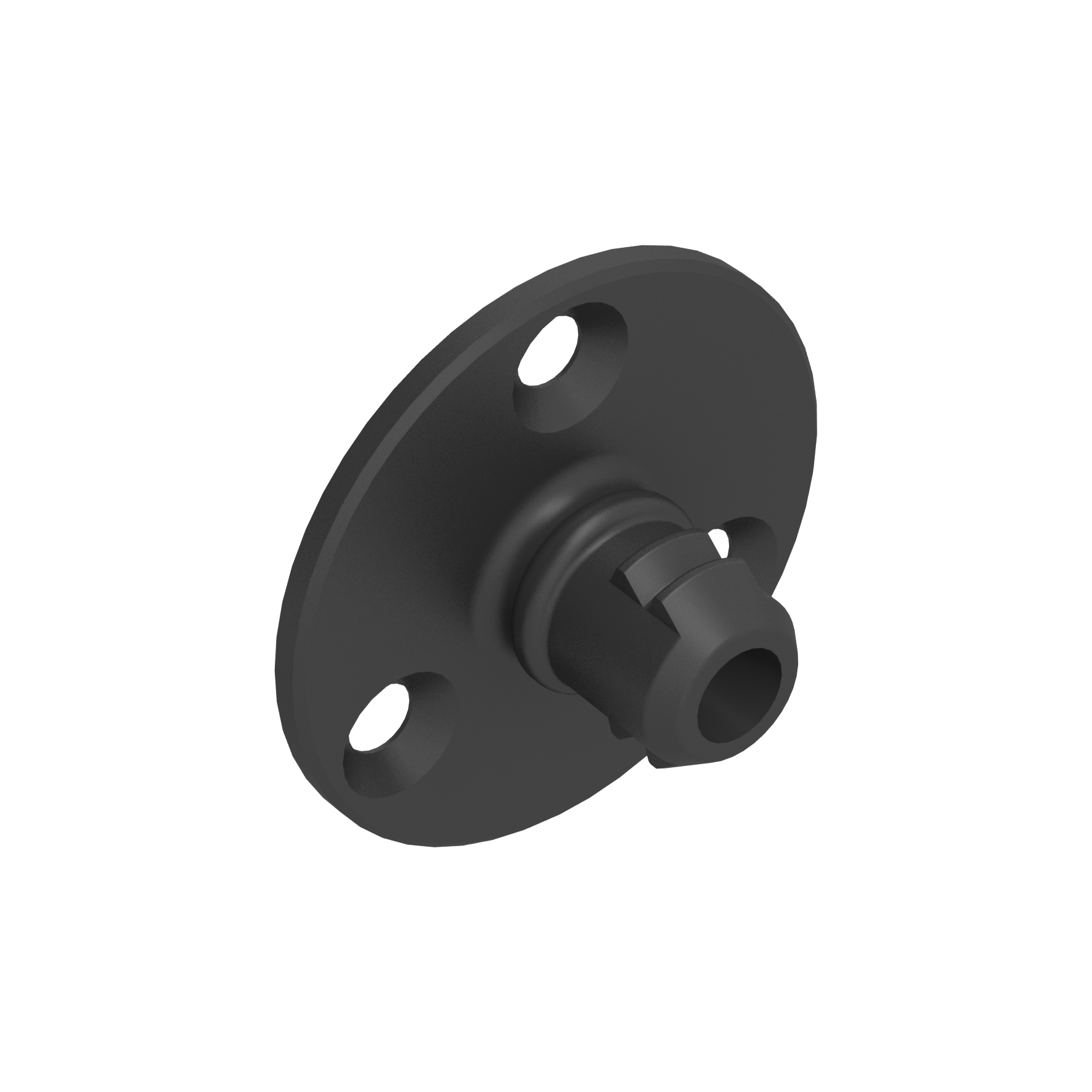

PC-SVMX Standard Clip – Vario Self Tapping Surface Mount Male Extra Heavy Duty 15kg/33lb

About PC-SVMX

The PC-SVMX adds a high shear strength, extra heavy duty option to the Standard Range with a screw fix installation method, removing the need for special installation tools. With a 15kg (33lb) pull out load, the clip is designed for mounting ceiling or heavyweight wall panels, and has a double detent safety feature providing two stages of clip engagement into the female clip. Can be paired with the PC-SF1, PC-RF1 and PC-AF1 for panel installation without special tools and is also compatible with the PC-F1A. The PC-SVMX features an inbuilt location point on the back of the clip which allows the installer to mark the male clip location on the panel without using a centrepoint (note: use CP-01ST with very hard panels e.g. HPL). See installation guide for more details.

PC-SVMX Features

Extra heavy duty 15kg pull out load.
Double detent safety feature providing two stages of clip engagement.
Durable head shape, ideal for prefabrication.

Find a distributor

Buy Online - USA Customers

Questions about this product? Contact our team.

Product Summary

Panel / Substrate	Plywood / MDF
Typical applications	Walls, Ceilings, Furniture
Pull out loads	15kg / 33lb
Adjustability	N/A
Panel gap	4mm (0.16”)

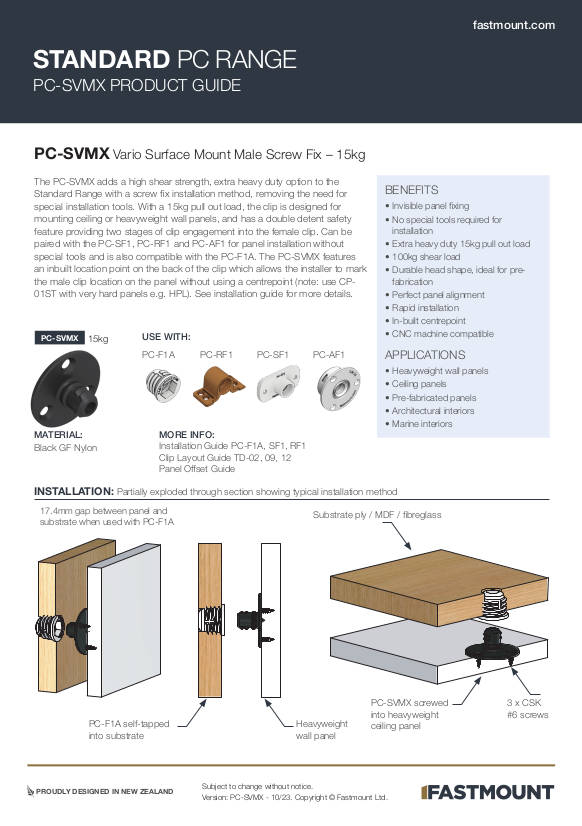

Data Sheet

Download Data Sheet

Installation Video

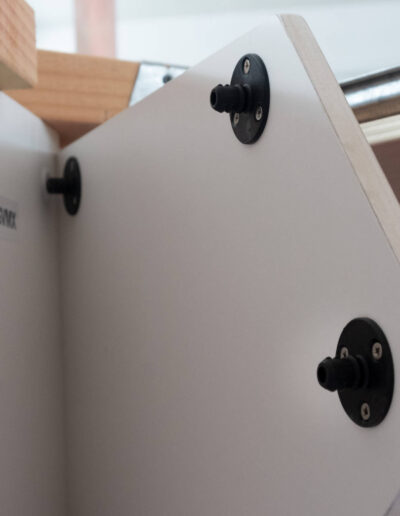

Watch how the PC-SVMX surface mount male clip installs quickly using standard tools, delivering precise alignment and a reliable fixing solution for ceilings, heavy wall panels and furniture applications.
