PC-AF1 Standard Clip – Auto Fit Female

About PC-AF1

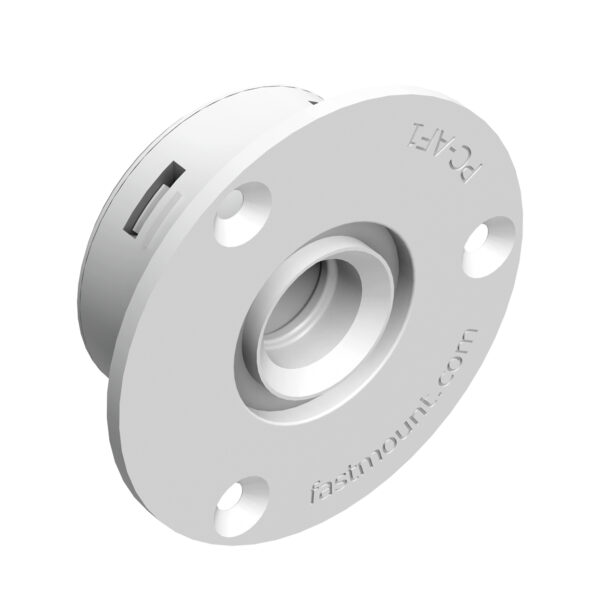

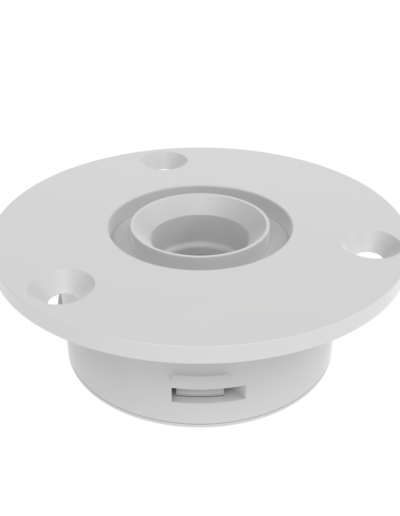

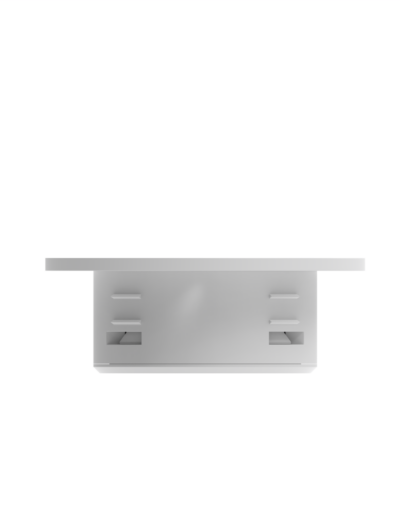

The PC-AF1 is an adjustable recessed female clip from Fastmount’s Standard Range. It can be installed into the substrate with appropriate screws. It is typically used for the mounting of interior wall and ceiling panels in marine and architectural applications where a concealed fixing system is required.

The PC-AF1 allows panels to be mounted securely while keeping the finished surface clean, with no visible screws or fixings. When installed using center points or a CNC process, it helps achieve accurate clip positioning and consistent panel alignment. Paired with Standard Range male clips, it provides a 4mm (5/32″) gap between panel and substrate, and allows 5mm (3/16″) of in-plane adjustability.

The PC-AF1 works with all Standard Range male clips, giving installers flexibility to choose the male clip best suited to the panel, substrate, load requirement, and project conditions.

PC-AF1 Features

• Designed for applications requiring lateral adjustment.
• Perfect for curved panels or tight alignments.
• Installation requires no special tools.
