PC-M2H Standard Clip – Self Tapping Male Heavy Duty (Black)
About PC-M2H
The heavy duty self tapping clip, PC-M2H adds to the Standard Range. Specifically designed for thicker panels with increased loading requirements, where PC-M1B is not strong enough, with a 10kg (22lbs) pull out load per clip set. Compatible with all female clips in the Standard Range, and installs into panels with a minimum 8mm (5/16″) thickness.
PC-M2H Features
- Designed to reduce on-site installation time.
- Perfect panel alignment and secure mounting every time.
- Reliable 10kg/22lb pull-out load for heavier panels.
Questions about this product? Contact our team.
Product Summary
| Panel / Substrate | Plywood / MDF |
| Typical applications | Walls, Ceilings, Furniture |
| Pull out loads | 10kg / 22lb |
| Adjustability | N/A |
| Panel gap | 4mm / 5/32" |

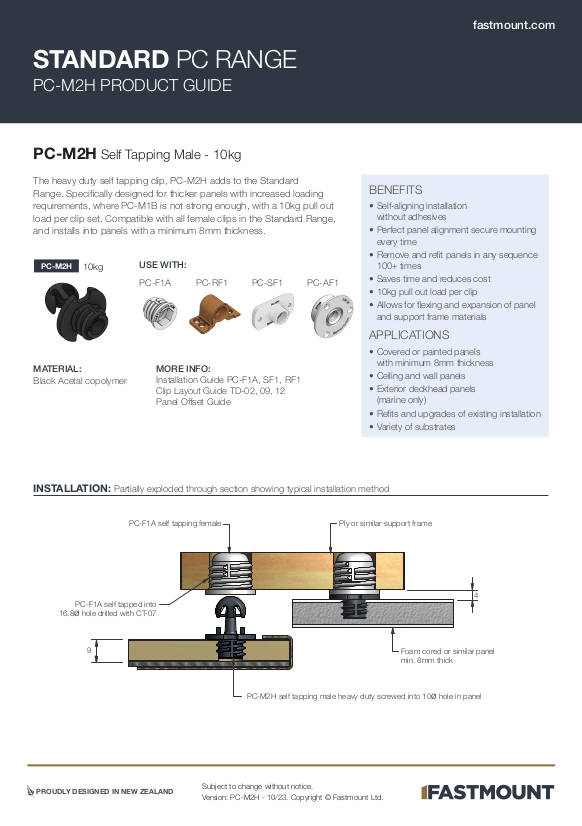

Data Sheet
Installation Video
Watch how the PC-M2H installs quickly using standard tools, delivering precise alignment and a reliable fixing solution for ceiling, wall panels and furniture applications.

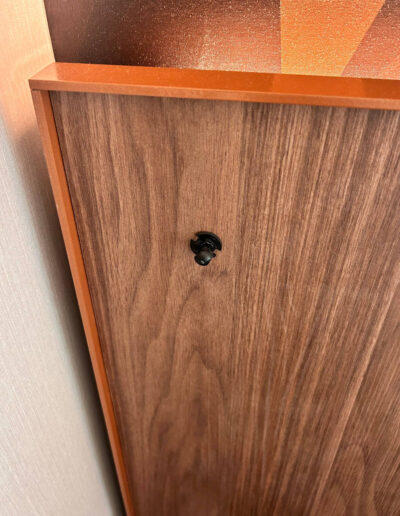

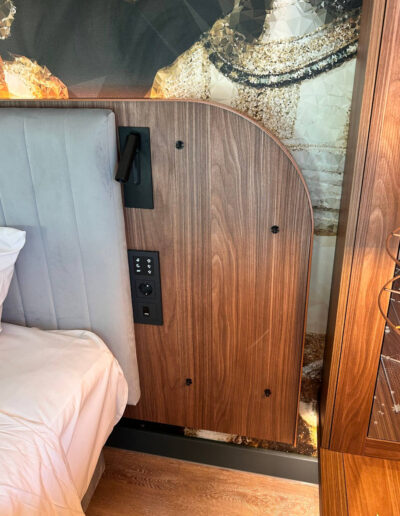

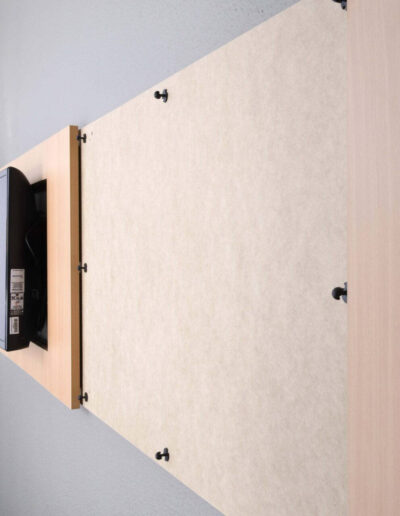

Product Gallery
