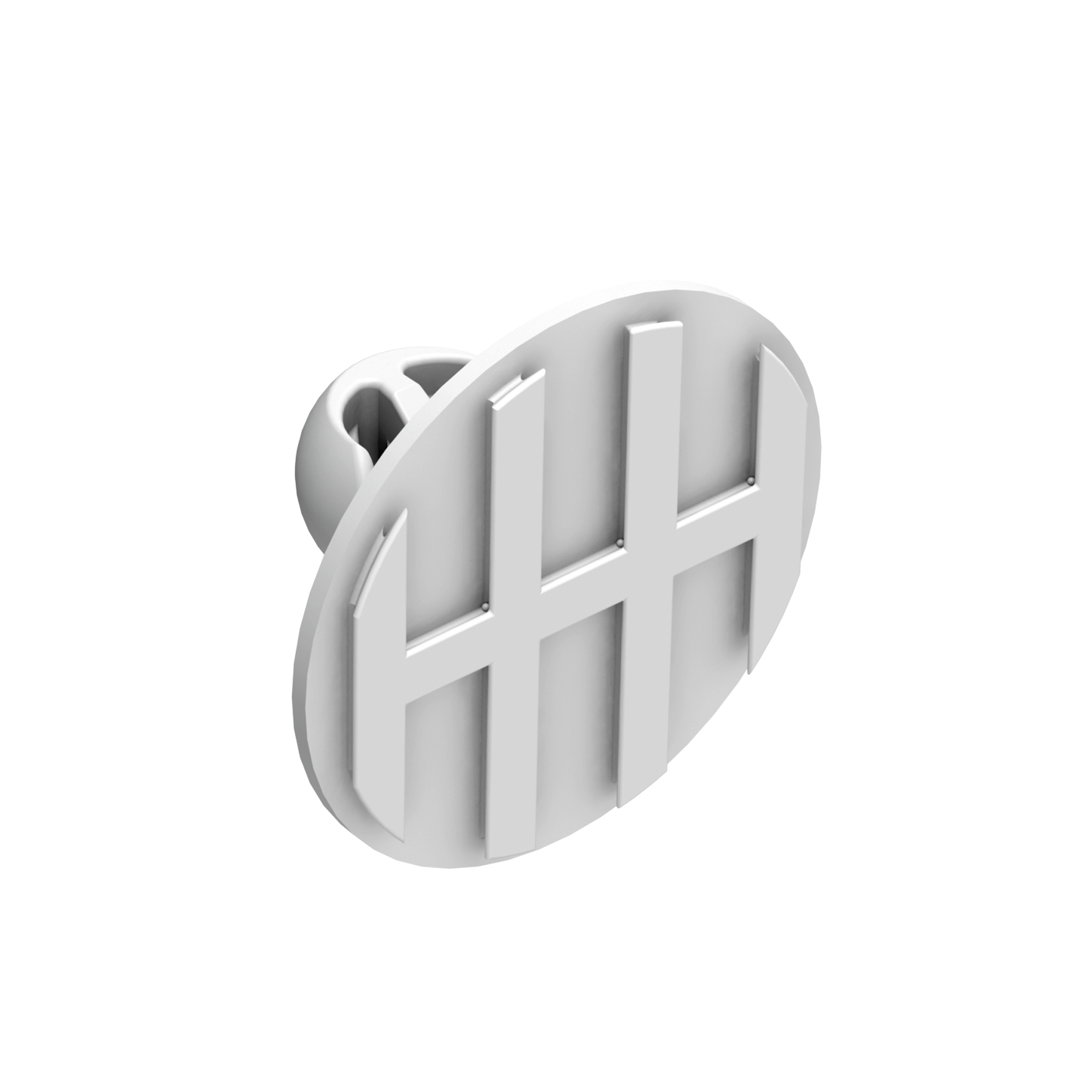

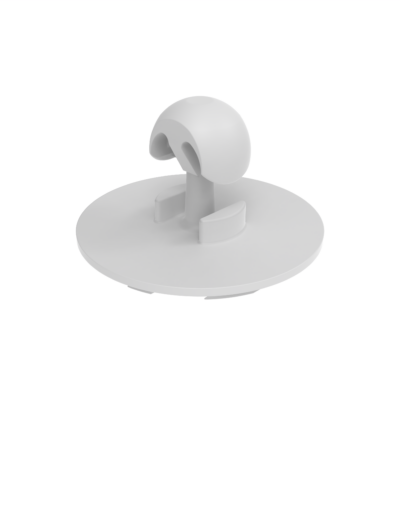

PC-SM2 Standard Clip – Surface Mount Male
About PC-SM2
The surface mount male is an extension of the Fastmount system, designed for use with thin-walled panels and where installers prefer an adhesive fix. It is ideal for new composite materials. Patented SuperGroove® mechanically engage into a 2 part epoxy adhesive on the base for secure mounting.
PC-SM2 Features
- Self-aligning secure mounting.
- Installation requires no special tools or skilled labour.
- No drilling of panels, fast installation.
Questions about this product? Contact our team.
Pairs With
Product Summary
| Panel / Substrate | Plywood / MDF |
| Typical applications | Walls |
| Pull out loads | 5kg / 11lb |
| Adjustability | N/A |
| Panel gap | 4mm / 5/32” |

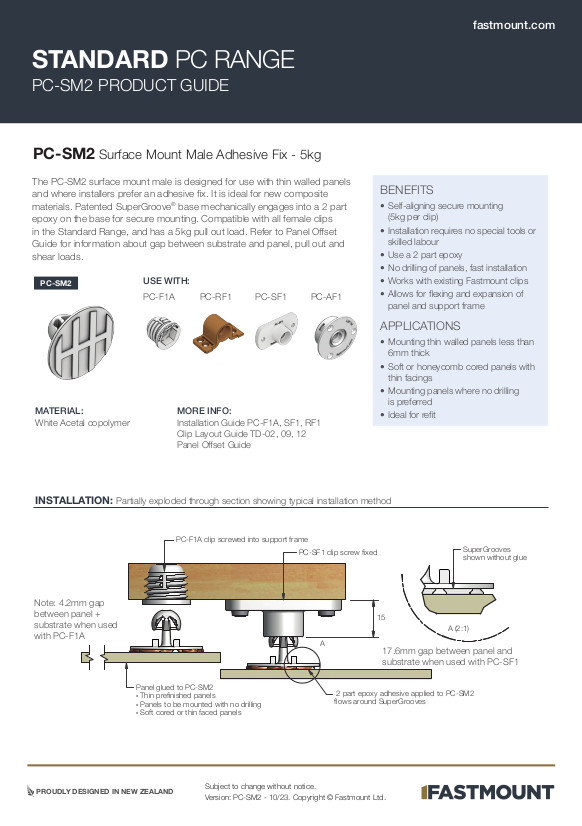

Data Sheet
Installation Video
Watch how the PC-SM2 surface mount male clip installs quickly using standard tools, providing a reliable adhesive-based fixing solution for thin-walled panels.
