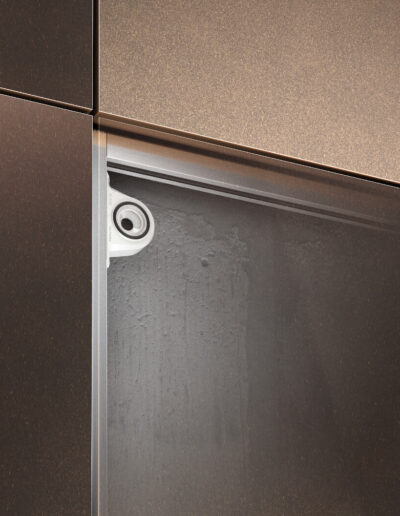

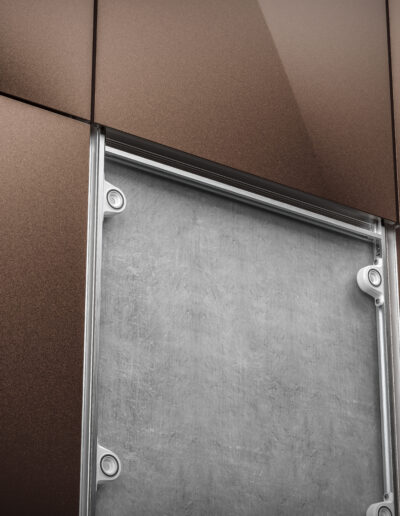

Female side mount clip with twist lock installation into aluminium extrusion. Fits into extrusion channel with dimensions of mouth: 7.5mm – 8.5mm, depth: min. 7mm, wall thickness: 0.75mm – 1.2mm. Compatible with SL-M18/SL-M18-FR for 18kg pull out load, or SL-M10 for 10kg pull out load. No special tools required for installation.
The full collection of installation videos for our clips, categorised by range.
Our clips are independently tested by SGS for pull-out loads and shear loads.
Use our Clip Layout Guides to find the correct clip spacing for different product ranges and panel types.
