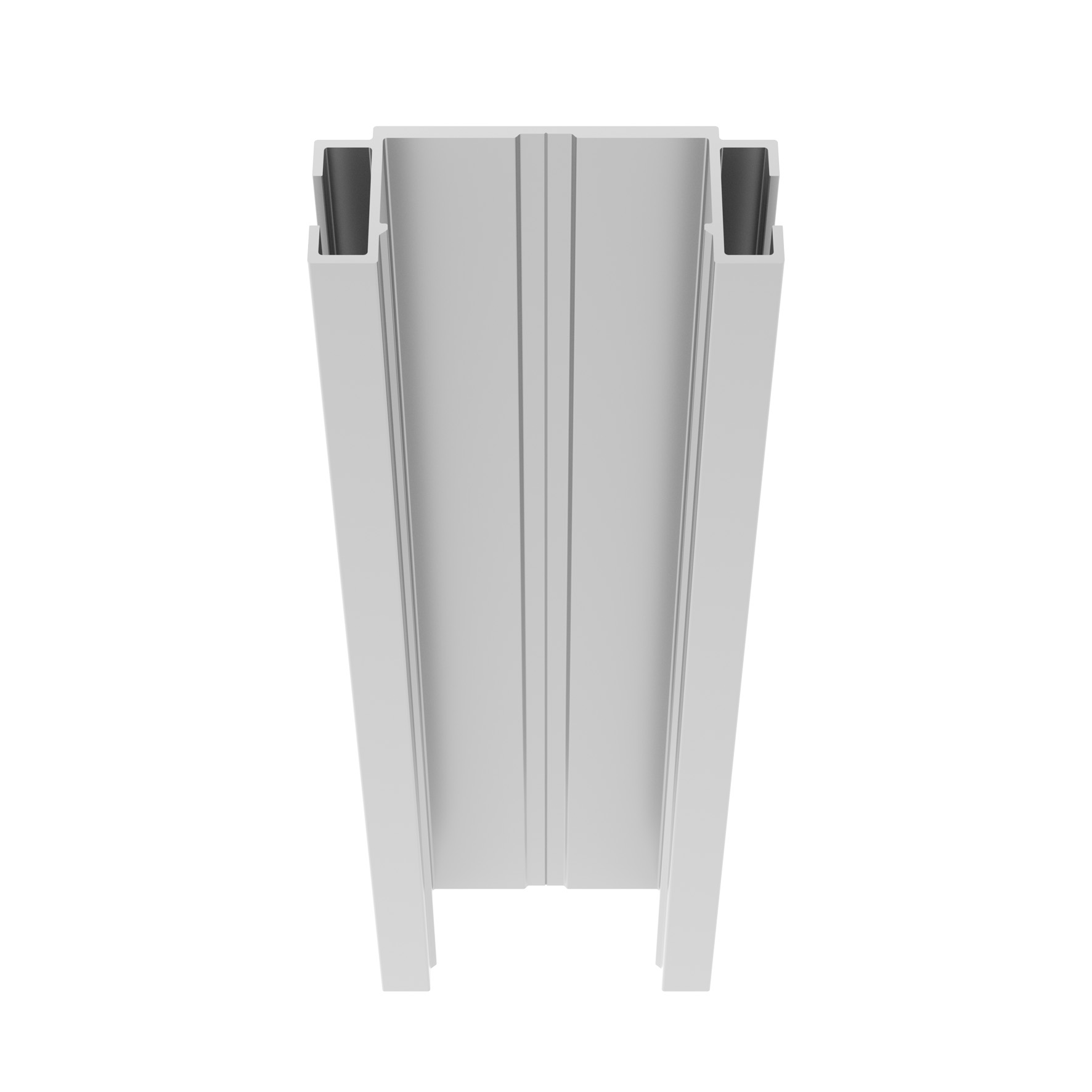

SL-RLE Stratlock Rail Extrusion
About SL-RLE
Available in 3m (9′ 10″) lengths, can be cut and assembled in grid format using appropriate Stratlock connectors. One profile for horizontal and vertical framing. Aluminium grade 6063 T5. Compatible with connectors SL-RCF90, SL-RCA180 and SL-RCAB180, and Stratlock Range clips SL-FA and SL-FB. Weight per metre 405 grams (0.9lb). Overall width 58mm (2.28″), overall depth 22.3mm (7/8″).
SL-RLE Features
- Allows for offsite prefabrication and installation
- Ideal for heavy-duty mounting applications
- Commonly used for commercial interior fit-outs
Questions about this product? Contact our team.
Product Summary
| Panel / Substrate | Drywall, Concrete/brick, Plywood |
| Typical applications | Walls, Ceilings |
| Pull out loads | 10kg / 22lb, 18kg / 40lb |
| Adjustability | N/A |
| Panel gap | N/A |
Data Sheet
Installation Video
Watch how the Stratlock Rail System provides a precise, integrated framework for installing wall and ceiling panels, creating a level and secure mounting surface for interior paneling.
