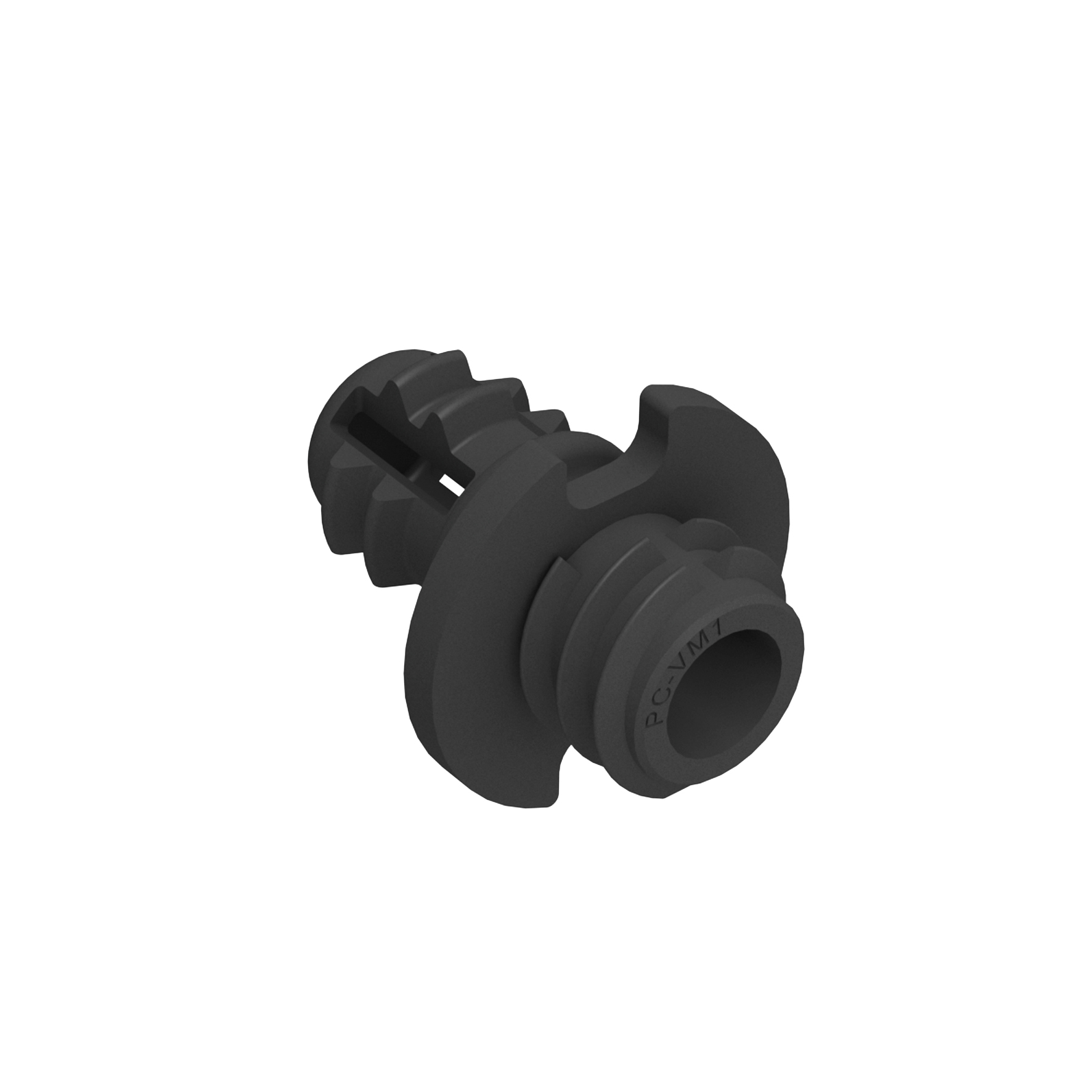

PC-VMX Standard Clip – Vario Self Tapping Male Extra Heavy Duty 15kg/33lb
About PC-VMX

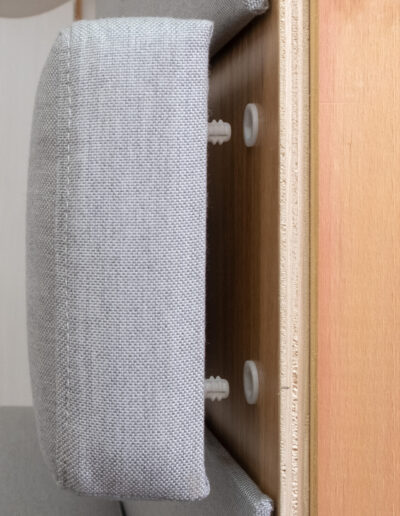

The PC-VMX is an extra heavy-duty self-tapping male clip from Fastmount’s Standard Range. It is typically used for the mounting of interior wall and ceiling panels in marine and architectural applications where a concealed fixing system is required.
The PC-VMX allows panels to be mounted securely while keeping the finished surface clean, with no visible screws or fixings. The PC-VMX has a 15kg (33lb) pull-out load and is designed for thicker panels with higher load requirements. Paired with the Standard Range female clips, it provides a 4mm (5/32″) gap between the panel and substrate.
When installed using centre points or a CNC process, it helps achieve accurate clip positioning and consistent panel alignment.
PC-VMX Features
- Variable gap measurements – 6.5mm (1/4”) at first engagement, 4mm (5/32”) at second engagement.
- Perfect for high shear load applications.
- Durable design for frequent handling.
Questions about this product? Contact our team.
Pairs With
Product Summary
| Panel / Substrate | Plywood / MDF |
| Typical applications | Walls, Ceilings, Furniture |
| Pull out loads | 15kg / 33lb |
| Adjustability | N/A |
| Panel gap | 4mm / 5/32” or 6.5mm / 1/4” |
Data Sheet
Installation Video
Watch how the Fastmount standard range clips install quickly using standard tools, delivering precise alignment and a reliable fixing solution for ceiling, wall panels and furniture applications.
