While traditional mounting methods like Z-clips have been industry standards, they often struggle with the precise requirements of geometric patterns and negative detail installations. Innovative mounting solutions are now transforming the way we approach the installation of complex geometric wall panels.
The limitations of traditional methods when installing complex geometric wall panels
The installation of geometric patterns and negative detail panels using traditional Z-clips presents a few significant challenges that impact both aesthetics and functionality.
Alignment challenges
Traditional Z-clips create significant alignment difficulties in geometric installations because their rigid, rectangular design can’t easily adapt to complex shapes. For example, when installing hexagonal or triangular panels that require precise negative detail spacing, the Z-clip’s fixed shape means installers must carefully calculate and manually adjust each clip position. This becomes increasingly difficult at panel intersections where multiple geometric shapes meet, as the rigid clips can’t be fine-tuned to create consistent gap spacing between panels.
Panel removal constraints
The interconnected nature of Z-clip installations creates a domino effect when maintenance is needed. For instance, if a single panel in the middle of a geometric pattern requires access or replacement, installers must remove multiple surrounding panels to reach it, starting from the edge of the installation and working inward. This not only increases maintenance time but also risks damaging adjacent panels during the removal process. In commercial environments where quick access for services or repairs is essential, this limitation can lead to significant disruption.
Labor-intensive installation
The process of modifying Z-clips for geometric patterns requires precise cutting and customization on site. Imagine an installation with triangular panels – each clip would have to be carefully measured and cut to specific lengths to accommodate the angular edges while maintaining proper engagement with the mounting rail. This manual modification process not only creates material waste but requires skilled labor and extensive quality control to ensure each modified clip maintains its structural integrity. For large commercial projects with numerous geometric panels, these labor-intensive modifications can significantly impact both installation timelines and project budgets.
How the Fastmount mounting system offers new solutions when working with complex geometric panels
Fastmount’s wide variety of clips offer new ways of installing complex geometric panels that save both time and money. The Stratlock range in particular offers solutions engineered towards commercial applications including:
- Fire-rated versions of every product, ensuring commercial building code compliance
- Choice of plastic or metal clips to meet different project specifications
- Precision-engineered components with CNC machining compatibility
- Multiple mounting options for various gap effects and panel depths
The benefits of Fastmount in geometric panel applications
When working with geometric panels, particularly complex ones, installers are looking for mounting methods that are both efficient, functional, and aesthetically pleasing.
Heavy-duty performance
Fastmount’s Stratlock range excels in handling substantial panel weights. This weight bearing capacity is particularly advantageous when working with intricate geometric designs, which often require larger or denser panels to achieve the desired visual impact. The system’s strength also allows designers and builders to push creative boundaries without compromising on structural integrity.
The superior load-bearing capacity of the Stratlock system translates to enhanced long-term stability. This is crucial for maintaining the precise alignment and visual appeal of complex geometric installations over time, reducing the need for frequent adjustments or repairs.
Precise alignment features
The mounting of complex geometric panels demands exceptional precision, which Fastmount delivers through advanced alignment features. CNC machine compatibility ensures exact clip placement during manufacturing, eliminating guesswork and reducing on-site adjustments. The system’s 3/8” adjustability proves invaluable when fine-tuning panel positions, allowing installers to achieve perfect alignment even with intricate geometric patterns. Center point markers further streamline the installation process, providing clear reference points for positioning complex shapes. These combined features enable installers to maintain consistent spacing and create seamless transitions between panels, ensuring the geometric design’s visual impact remains true to the architect’s vision.
Versatile mounting options
Fastmount’s versatility in offering both recess-mounted and surface-mounted options is particularly advantageous when working with complex geometric panels. This flexibility allows installers to adapt to various design requirements, accommodating different gap sizes and creating precise negative detail effects crucial for geometric patterns. For intricate designs, the ability to fine-tune the mounting depth and panel positioning becomes essential. Recess-mounted options can create subtle shadow lines that accentuate the geometric shapes, while surface-mounted alternatives allow for more pronounced relief effects. This adaptability enables designers to achieve a wide range of visual impacts, from sleek, minimalist looks with tight, uniform gaps to more dramatic, three-dimensional appearances with varied panel depths.
The system’s structural integrity remains consistent across these mounting options, ensuring that even the most complex geometric configurations maintain their stability and alignment over time. This versatility not only enhances the aesthetic possibilities but also simplifies the installation process for challenging geometric layouts, allowing for creative expression without compromising on practicality or durability.
Case studies in complex geometric applications
The following are real-world examples of geometric panels being mounted efficiently, resulting in aesthetically pleasing and functional designs. These case studies demonstrate how advanced mounting systems can overcome the challenges of complex geometries, delivering precision and visual impact in diverse architectural settings.

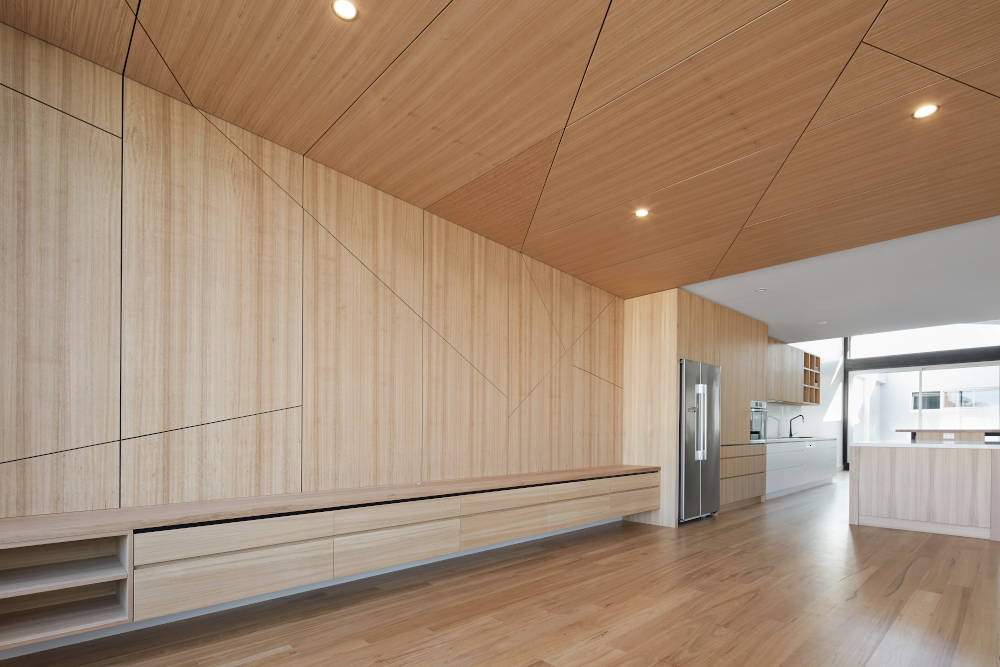

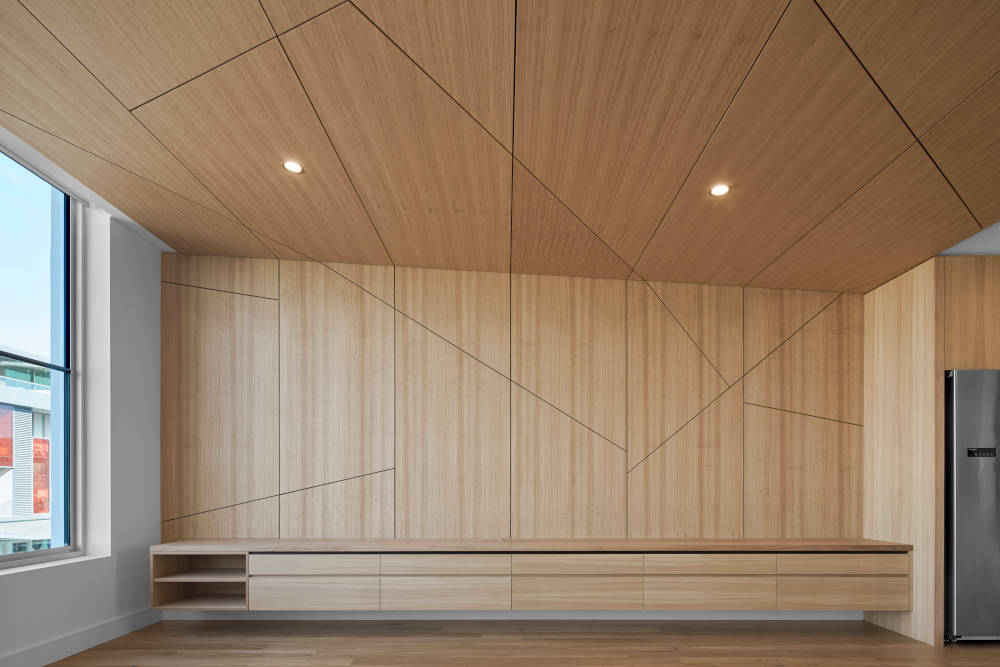

Elwood House
The Elwood House project showcases the precision required for complex geometric installations in residential spaces. The floor-to-ceiling timber veneer panels presented unique installation challenges, particularly in maintaining consistent negative detail throughout both wall and ceiling surfaces. Working with Australian distributor Titus Tekform, the installation team selected a mounting system that enabled non-sequential panel placement while ensuring precise alignment. The system’s adjustability proved crucial for achieving exact panel positioning, especially where the design transitioned from wall to ceiling. This Melbourne residence demonstrates how advanced mounting solutions can maintain perfect negative detail spacing even with substantial panels, resulting in a sophisticated architectural feature that seamlessly integrates with the lounge area’s design.
Naturalis Biodiversity Center
The Naturalis Biodiversity Center project demonstrates the versatility of mounting systems in handling complex geometric configurations. The 36-meter high atrium features a striking combination of oval modules, triangular panels, and hexagonal elements that required precise alignment throughout the installation. The project utilized 11,000 pairs of hidden clips to secure the oak veneered MDF panels, with CNC machine compatibility ensuring exact clip placement for the intricate geometric patterns. The system’s adjustability proved essential in achieving perfect alignment across the three-dimensional concrete structure, which resembles interlocking molecules. This installation particularly showcases how modern mounting solutions can maintain consistent spacing and alignment even when integrating multiple panel shapes into a cohesive architectural feature that filters daylight through circular windows.
Conclusion
The installation of complex geometric patterns presents unique challenges that traditional mounting methods struggle to address. Fastmount’s innovative solutions, particularly the Stratlock range, offer a comprehensive answer to these challenges. By overcoming the limitations of traditional methods, these advanced mounting solutions enable designers and installers to bring even the most ambitious geometric visions to life, without compromising on structural integrity or ease of maintenance.
