The installing of panels across uneven substrates, multi-level planes, or intentionally offset designs present unique challenges. Traditional mounting methods are making way for innovative solutions that result in better efficiency, and a more professional finish to designs.
The limitations of traditional methods when installing panels on uneven substrates
When installing panels on uneven substrates and different planes, traditional mounting systems like Z-clips face several significant challenges that impact both installation efficiency and final results.
Alignment challenges
The rigid, rectangular design of Z-clips presents significant challenges when aligning panels across uneven substrates. Their inflexibility makes it particularly difficult to maintain consistent spacing where surfaces transition between different planes. When working with multi-level surfaces, installers often struggle to achieve precise negative details, as the clips can’t adapt to variations in the substrate. This limitation becomes especially apparent at panel intersections, where even minor misalignments can disrupt the intended design aesthetic.
Weight distribution concerns
The horizontal configuration of Z-clips can create problematic weight distribution patterns, particularly when mounting panels on uneven substrates. This uneven load distribution leads to concentrated stress points on specific clips, potentially compromising the long-term stability of the installation. The issue becomes more critical with heavier panels, where proper weight distribution is essential for maintaining structural integrity and preventing panel warping or failure over time.
Limited adjustability
The fixed nature of Z-clips severely restricts adjustment capabilities during and after installation. Without the ability to make precise adjustments, installers face significant challenges when working with uneven substrates or transitioning between different planes. This limitation is particularly problematic in commercial installations where multiple panels must align perfectly across varying surface levels. The lack of adjustability not only complicates the initial installation but also makes it difficult to address any settling or alignment issues that may develop over time.
Advanced solutions for the installation of panels on uneven substrates
Fastmount’s innovative mounting systems provide comprehensive solutions for installing panels on uneven substrates and multi-level surfaces.
Versatile Rail System
Fastmount’s innovative Stratlock Rail System transforms challenging installations on uneven substrates into manageable projects. The vertical rail links can be installed directly onto the wall and packed out where needed, effectively creating a new, level substrate to work from. This adaptability enables installers to achieve precise panel mounting regardless of surface irregularities, while the system’s compatibility with CNC machining ensures exact clip placement for optimal panel positioning.
3/8” adjustability
The system’s unique adjustment capabilities set it apart from traditional mounting methods, offering 3/8” movement after initial panel placement. This comprehensive adjustability proves essential when working with uneven substrates or different planes, as installers can fine-tune panel positions to achieve perfect alignment. The inclusion of centerpoint markers further enhances precision, enabling installers to maintain consistent spacing and creating seamless transitions between panels.
Heavy-duty performance
The Stratlock range excels in supporting substantial panel weights across varied surfaces, making it particularly valuable for demanding installations. The system’s robust design can effectively handle panels up to 40 kilograms, making it an effective tool for installations involving heavy material like marble and stone. This weight-bearing capacity, combined with the system’s ability to distribute weight evenly, prevents stress points and maintains structural integrity across varying surface levels.
Installation Process
The installation of panels on uneven substrates using the Stratlock system follows a streamlined process:
- Rail installation: Mount the Stratlock Rail directly onto the substrate, using appropriate packers/shims where needed to achieve a perfectly level framework. The aluminum extrusion can be installed both vertically and horizontally to create a level mounting surface.
- Clip attachment: Secure female clips to the Rail System, maintaining consistent spacing.
- Panel mounting: Install panels onto the mounted clips.
- Fine-tuning: Utilize 3/8” adjustability to achieve precise alignment.
- Final inspection: Verify consistent spacing and alignment across all planes.
Technical Specifications
The Stratlock range offers comprehensive technical specifications designed to meet diverse installation requirements like those encountered when paneling on different planes :
- Fire-rated versions of every product
- Choice of plastic or metal clips
- CNC machine compatibility
- Multiple mounting options for various gap effects
- Can be used on different substrates – drywall, plywood, steel
Case studies
The following case studies demonstrate how the paneling of different planes can be completed efficiently and effectively using modern mounting methods that are far more flexible and strong than traditional mounting systems.
Elwood House
The Elwood House project in Melbourne, Australia demonstrates how modern mounting systems can effectively handle installations across varying surface levels. The installation features floor-to-ceiling geometric timber veneer panels in the lounge area that required precise alignment as the design extended onto the ceiling. The Sawdust Timber Furniture team recessed Fastmount PC-SF1 clips into the plastered timber frame and installed heavy-duty PC-M2H male clips into the Blackbutt veneer panels, creating a secure 10kg pull-out load capacity that maintained both stability and removability.
The system’s ability to maintain consistent negative detail spacing around all panel edges proved crucial, particularly where significant packing out was required to achieve perfect alignment between wall and ceiling transitions. This project showcases how modern mounting systems can transform challenging installations into achievable architectural features while maintaining visual consistency throughout multiple surface transitions.

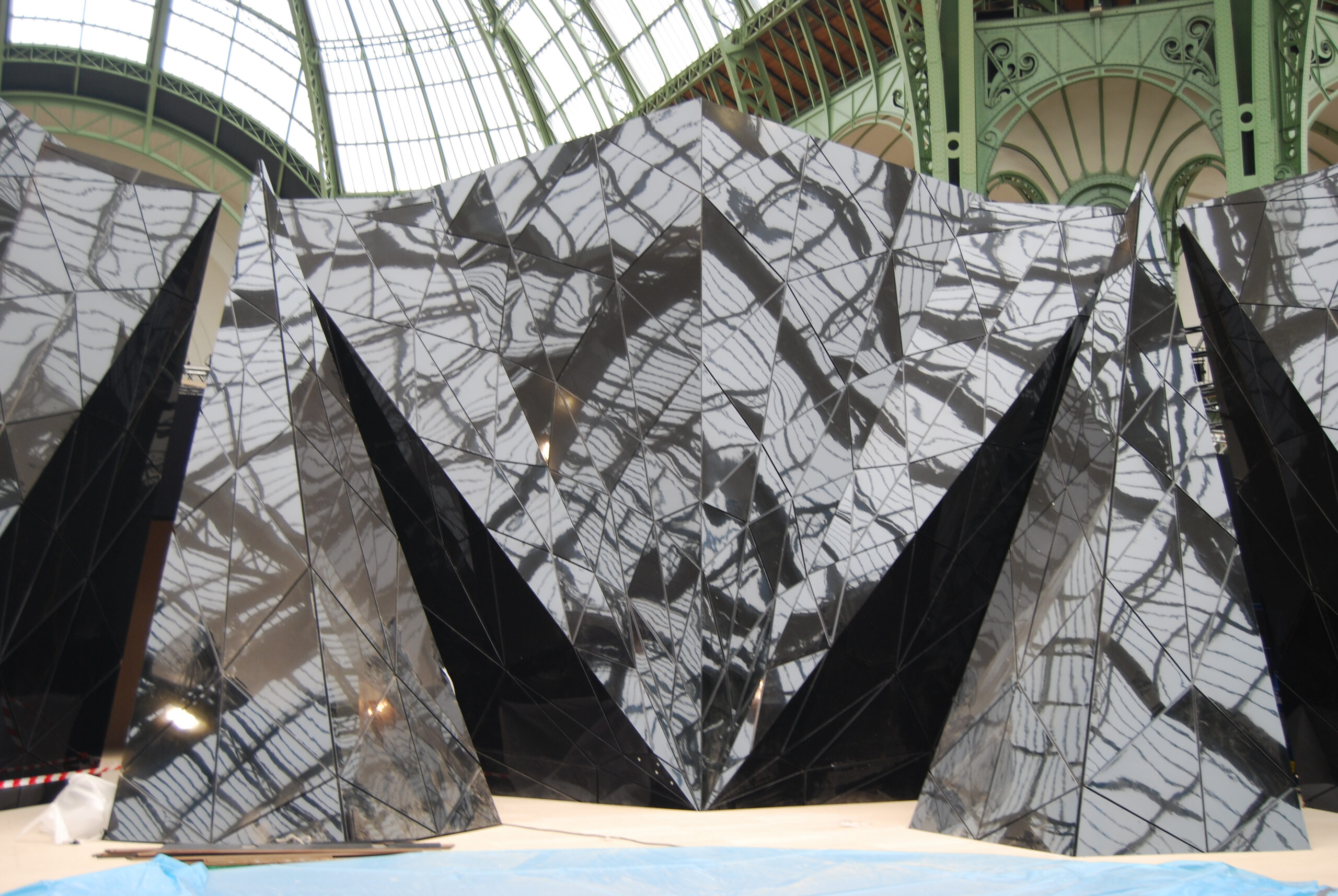

125th Anniversary Bvlgari Installation, Paris
The Bvlgari installation at the Gran Palais in Paris, France showcases the effectiveness of modern mounting systems when dealing with uneven substrates in high-end commercial projects. It required extensive use of packers behind the rail system to achieve a perfectly level mounting surface despite significant substrate variations. This approach effectively created a new substrate to work from, enabling precise panel alignment across multiple surface levels.
The adjustability of Fastmount’s system proved crucial for maintaining consistent negative detail throughout the installaton, particularly where surfaces transitioned between different planes. The ability to wind clips in or out allowed installers to fine-tune panel positions, while CNC compatibility ensured exact clip placement across various surface levels. This precision was essential for achieving the luxury finish required in this prestigious project.
Conclusion
Installing panels on uneven substrates demands mounting solutions that offer precision, adjustability, and versatility. While traditional methods struggle with multi-level installations, innovative systems like Fastmount’s Stratlock® range provide comprehensive solutions that enable designers and installers to achieve flawless panel installations across varied planes.
