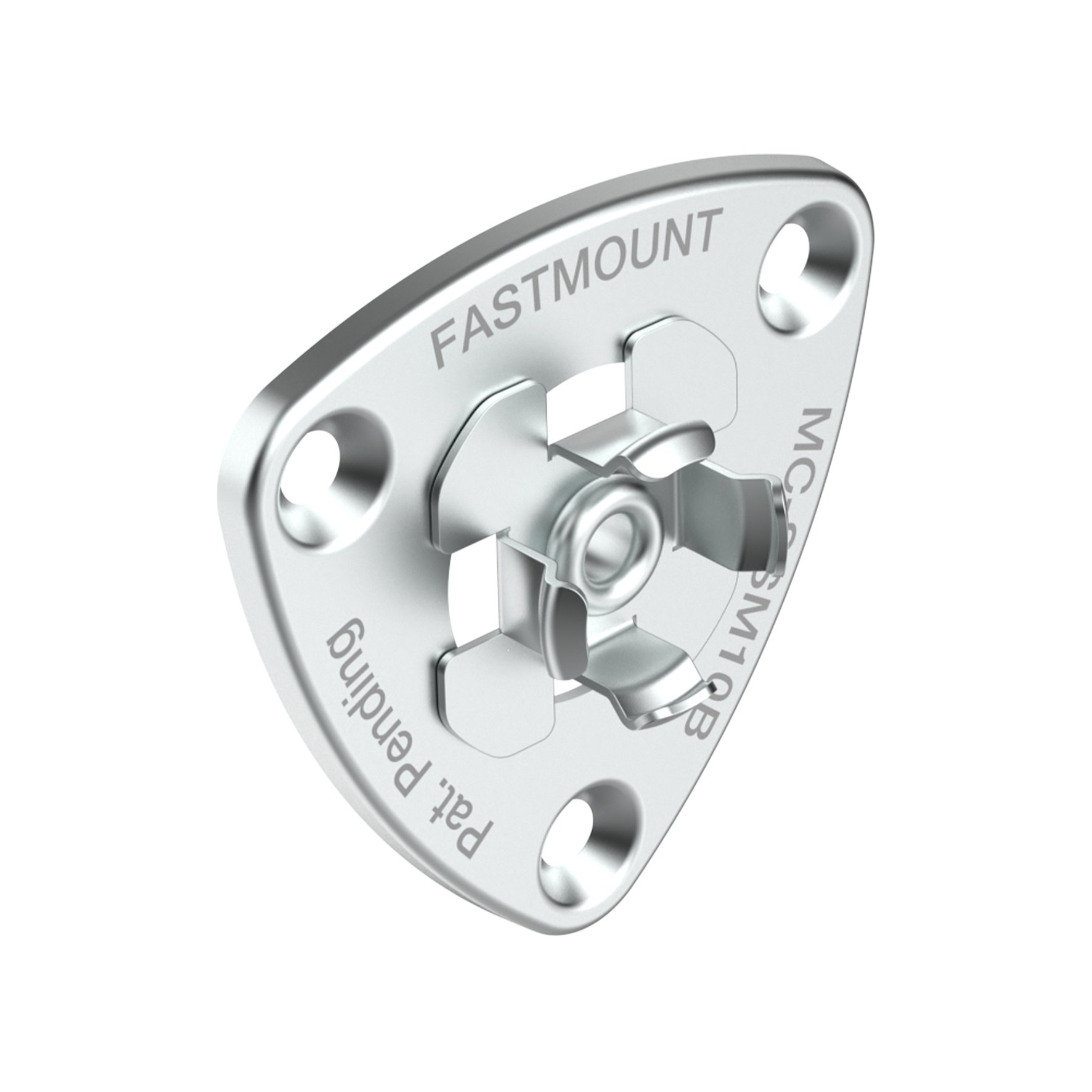

MC-SSM10B – Stainless Steel Clip Male
About MC-SSM10B
The MC-SSM10B is built from 316 stainless steel for enhanced fire safety and durability. As well as offering superior fire resistance, the clip can withstand heavy load bearing for both wall and ceiling panels. It screw fixes onto the back of the panel before being installed into the female clip component (MC-SSF10B). Ideal for use with fire rated panels, in fire egress paths and anywhere fire rated certification is required. Refer to Panel Offset Guide for gap between substrate and panel, pull out and shear loads.
MC-SSM10B Features
- Enhanced fire safety and durability
- 10kg/22lb pull out load
- Provides acoustic and vibration isolation
Questions about this product? Contact our team.
Product Summary
| Panel / Substrate | Plywood, MDF, Fire rated panels |
| Typical applications | Walls, Ceilings |
| Pull out loads | 10kg / 22lb |
| Adjustability | N/A |
| Panel gap | 4mm / 5/32" |
Data Sheet
Installation Video
Watch how the MC-SSM10B and MC-SSF10B clips provide a secure, fire-rated fixing solution, with simple snap-fit installation and 5mm adjustment for precise alignment.
