Find the right Fastmount system for your project
Fastmount offers a suite of purpose-designed panel mounting systems engineered to meet the demands of modern architectural fit outs, marine paneling and furniture. Whether you need adjustable alignment, heavy-duty support or rapid installation, each range solves a specific panel mounting challenge. Use our interactive guide below to compare our systems and find the best fit for your project.

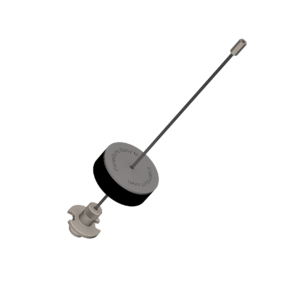

PanelSafe Range
Controlled removal of ceiling panels; safety for heavy panels.
| Panel weight | Up to 10kg dynamic load drop |
| Substrate | Plywood & MDF |
| Gap panel and substrate | Zero |
| Adjustability | No |
| Centre points for positioning | No |
Stratlock Range
For large/heavy panels in architectural applications. Includes rail system allowing use in suspended ceilings and stand off walls. Can be attached directly to timber battens without the use of rails.
| Panel weight | Up to large panels |
| Substrate | Plywood & MDF |
| Gap panel and substrate | 30mm (with rail) / 6mm (without rail) |
| Adjustability | Yes |
| Centre points for positioning | Yes |

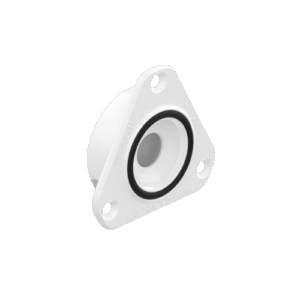

SLX Range
For drywall & plywood; large/heavy wall and ceiling panels. 6mm adjustability in all directions.
| Panel weight | Up to large panels |
| Substrate | Drywall & Plywood |
| Gap panel and substrate | 7mm |
| Adjustability | Yes |
| Centre points for positioning | Yes |
Standard Range
Comprehensive range for small/mid-size panels and furniture.
| Panel weight | Small / Mid size |
| Substrate | Plywood & MDF (≥ 12mm) |
| Gap panel and substrate | 4mm |
| Adjustability | No |
| Centre points for positioning | Yes |
Low Profile & Very Low Profile Ranges
Low Profile: Lightweight curved / flat wall panels. Not suitable for ceilings.
Very Low Profile: For furniture (chairs, sofas, headboards) and limited-thickness substrates. Not for ceilings.
| Panel weight | Small / Mid size |
| Substrate | Plywood & MDF (≥ 9mm) |
| Gap panel and substrate | 4mm |
| Adjustability | No |
| Centre points for positioning | Yes |
Additional to the ranges covered above we have:
Low Profile Range
Can be used on plywood / timber substrates for small/medium weight wall panels that require less space between panel and substrate or for curved panels.
Metal Range
Designed for robust applications, public and fire-rates areas. Can be used for both walls and ceilings, available in either a nickel plated or stainless steel version.
Textile Range
Designed to mount to upholstery and fabrics. Female clip can be sewed to fabric, different male clips available depending on mounting preference (screwed to plywood, adhesive fixed).
